News/Event

Battery-less Absolute Encoder Type Electric Actuator High Performance High Rigidity Guide Rod Type　LEG Series Updated May-22

  • Max. weight of transferred object: 75 kg (Size 25), 100 kg
    (Size 32), 150 kg (Size 40)
  • High performance step motor controller
    (Max. acceleration/deceleration: 5000 mm/s2)
  • With internal battery-less absolute encoder
  • Auto switches are mountable. (In-line only)
    For checking the limit and the intermediate signal
  • Fully integrated the compact guide unit for improved lateral load capacity

    • Catalogs

    NEW

    Bernoulli Gripper ø30, ø40, ø60, ø80　ZNC Series Updated May-22

  • Body size ø80 has been added. [New]
  • For the adsorption transfer of thin cloths, films, printed circuit boards, etc.
  • Energy saving: Max. 72% reduction
    (Comparison of air consumption to lifting force)
  • High lifting force: 28.3 N
    5.7 times that of the existing model
    (Existing model: 5.0 N → ZNC60: 28.3 N)
  • 3 types of body materials: Aluminum, Resin, Stainless steel
  • Attachment
    With stopper: Prevents workpiece slippage
    With vibration suppression cover: Suppresses the vibration noise of thin workpieces

    • Catalogs

    NEW

    Battery-less Absolute Encoder Type Electric Actuator/High Rigidity and High Precision Slider Type LEKFS Series Updated Jul-21

  • Circular arc grooves allow for high rigidity and high precision.
  • Moment resistance: Improved by up to 61%
  • Table displacement: Reduced by up to 50%
  • With internal battery-less absolute encoder
    Restart from the last stop position is possible after recovery of the power supply.
    Reduced maintenance (No need for control or replacement)
  • Positioning repeatability: ±0.01 mm

    • NEW

    Fieldbus System EX260 Series SI Unit EX260-SEN2-X205 Updated Feb-20

  • LAN cable connectable RJ45 communication connectors
  • Communication protocol: EtherNet/IP™
  • Number of outputs: 32
  • Daisy-chain wiring of communication cables and power supply cables is possible.

    • NEW

    Electric Actuator/High Rigidity Slider Type Ball Screw Drive LEJS100-X400 Series Updated Feb-20

  • Motor output: Supports 750 W
  • Work load (Speed: 500 mm/s, Lead: 10 mm)
    　Horizontal: 400kg, Vertical: 80kg
  • Speed (Stroke: 500 mm, Lead: 50 mm)
    　Horizontal/Vertical: 2300 mm/s
  • Max. acceleration/deceleration: 9800 mm/s2

    • NEW

    Regulator with Built-in Pressure Gauge Filter Regulator with Built-in Pressure Gauge ACG/ARG/AWG Series Updated Feb-20

  • Improved visibility by mounting the pressure gauge on the top of the knob
  • Transparent bowl guard
    Improved environmental durability due to 2-layer construction (Body size 30 or more)
    Better visibility: 360º, Light weight: Approx. 12% reduction
  • Space saving, Labor saving
    Installation height: Approx. 30 mm reduction
    No need to machine a hole for the pressure gauge

    • NEW

    Modular F.R.L. Units AC Series
    Updated Feb-20

  • Modular Design with Uniform Body Style
  • Better visibility & environmental resistance
  • 2-layer construction: The bowl is covered with a transparent bowl guard!
    Better visibility: 360°
  • No tools are required.
    Easier replacement of the element (AF-D only)

    • NEW

    Multistage Ejector ZL1/ZL3/ZL6 SeriesUpdated Feb-20

  • Compact3 types available: 100, 300, and 600 L/min (ANR)
  • Air consumption 90% reduction (For the ZL3, ZL6)
  • Weight Max. 60% reduction [ZL112 (Existing model): 450 g / ZL1: 180 g]
  • 3-stage diffuser construction (For the ZL1)
    Suction flow rate increased by 250%
  • 3 types of vacuum pressure sensors
  • No tools are required! Maintenance labor can be reduced.

    • NEW

    Vacuum Unit Ejector System/Vacuum Pump System ZK2□A Series Updated Feb-20

  • Air supply is cut-off when vacuum is reached.
    Energy saving ejector: Air consumption 93% reduction
  • More efficient ejector: Suction flow 50% increase
    (Compared to other SMC 1-stage ejectors)
  • Energy saving efficiency: 93% reduction
  • Improved low noise and suction flow by adoption of a high-noise reduction silencer

    • NEW

    Low Profile 2/3-Port Solenoid Valve SX90/090 Series Updated Jan-20

  • Compact
    Overall length: apporox 38 mm (2-port), 54 mm (3-port)
    Valve width/ height: 10 mm
    Weight: 10 g (2-port), 20 g (3-port)
  • Large flow rate
    C [dm3 (/ s·bar)]: 0.25 (2-port/N.C.) , 0.5 (3-port) Flow rate [L/min (ANR)] 45* (2-port), 90* (3-port) *At 0.2 MPa

    • NEW

    Magnet Gripper ø16, ø25, ø32, ø50 MHM Series Updated Jan-20

  • Attracts and holds heavy objects with a magnet
  • Holding force: Max. 1000 N (ø50, Workpiece thickness 6 mm)
  • Transfers steel plates without a vacuum
  • Holding force (Attraction force) can be adjusted
  • Drop prevention: Holds workpieces even when air is shut off

    • NEW

    Thermo-chiller Dual Channel Refrigerated Thermo-chiller for Lasers HRL Series
    Updated Jan-20

  • 3-phase 380 to 415 VAC (50/60 Hz)
  • 3-phase 460 to 480 VAC (60 Hz)

    • NEW

    Liquid Dispense Pump (Solenoid Type) LSP Series Updated Jan-20

  • Compact solenoid type diaphragm pump, which dispenses stable and repeatable
    volumes of liquid measuring 5μL or more per shot.
  • Adjustment of dispense volume is possible.
  • Stable dispense volume Shut-off function Self-contained system does not need any priming.
    Repeatability: ±1%
    ∗±2% at 5 to 15μL　Under SMC’s measurement conditions
  • Shut-off function
  • Self-contained system does not need any priming.

    • NEW

    Intelligent Valve Controller ND9000 Series Updated Dec-19

  • Can be used for rotary and linear actuators
  • SIL 2 certified by TÜV (Acc. to IEC 61508)
  • Equipped with self-diagnostics
  • Equipped with fail safe function (fully closed/fully open)
  • Compatible with HART communication
  • Exterior covering enclosure: IP66, NEMA 4X

    • NEW


    Digital Valve Controller ND7000 Series
    Updated Dec-19

  • Can be used for rotary and linear actuators
  • SIL 2 certified by TÜV (Acc. to IEC 61508)
  • Equipped with self-diagnostics
  • Equipped with fail safe function (fully closed/fully open)
  • Compatible with HART communication
  • Exterior covering enclosure: IP66, NEMA 4X

    • NEW


    Vacuum Pad: Semiconductive Silicone Rubber ZP3-X1600 Series Updated Dec-19

  • Discharge static electricity gently. Prevent damage to lectronic parts.
  • SSurface resistance: 106 to 109［Ω］

    • NEW

    With Stable Lubrication Function (Lube-retainer) Dual Rod Cylinder/Compact Type CXSJ Series Updated Dec-19

  • Applicable to operation in micro-powder (10 to 100 μm) / general environments
  • 4 times the durability of the standard model in micro-powder environments
  • As Lube-retainers are mounted in two locations, grease film is formed on the piston rod surface, improving durability
  • This construction allows for the prevention of the entry of dust and foreign matter.
  • The number of operating cycles can be improved even in general environments.

    • NEW

    AC Servo Motor Driver LECSB-T/LECSC-T Series Updated Dec-19

  • LECSB-T Series (Pulse Input Type/Positioning Type)
    Positioning by up to 255 point tables
    Input type: Pulse input (Sink (NPN) type interface)
  • LECSC-T Series (CC-Link direct input type)
    Position data/speed data setting and operation start/stop
    Positioning by up to 255 point tables (when 2 stations are occupied)
    Up to 32 drivers can be connected (when 2 stations are occupied) with CC-Link communication.

    • NEW

    Circulating Fluid Temperature Controller Thermo-chiller Environmentally Resistant Type HRS-R Series Updated Dec-19

  • The cooling capacity 5000 W (60 Hz) type has been newly added.[New]
  • Resistant to dusty or water splashing environment
  • Protection of the electrical unit: IP54
  • Metal panel
    Entire exterior surface is metal.
    Stainless steel panel can be selected. (Option)
  • Large capacity tank (12 L)
  • Ambient temperature: 5 to 45°C

    • NEW

    Blow Gun with Flow Rate Adjustment Function VMG11□-□-□-X54 Updated Nov-19

  • The flow rate can be easily adjusted according to the amount of force applied to the lever.

    • NEW

    Cylinder with Lock With Lock Status Indication MWB-X3030□ Updated Oct-19

  • Safety Measure: Whether the cylinder is in a locked or manual lock released state can be visually confirmed at a glance
  • The high visibility of the lock released state indication label (yellow)
    allows for easy confirmation of the lock released state, even from a distance.
  • Available with a cap nut Prevents the adhesion of spatter, foreign matter, etc.

    • NEW

    Plug-in For SY3000 Blanking Plate with Output Updated Dec-19

  • Safety Measure: Whether the cylinder is in a locked or manual lock released state can be visually confirmed at a glance.
  • The blanking plate extracts the individual signal of the manifold valve.
  • For the control of separately mounted valves
  • For the control of vacuum ejectors by means of Fieldbus unit signals

    • NEW

    Body Ported Type/Box Type (Built-in Silencer) ZH Series Updated Oct-19

  • Box type (Built-in silencer) [New]
  • Compact and lightweight
    Overall length: Max. 11% reduction
    Port height: Max. 25% reduction
    Volume: Max. 39% reduction
  • 4 mounting types
  • A silencer and standard bracket are available.

    • NEW

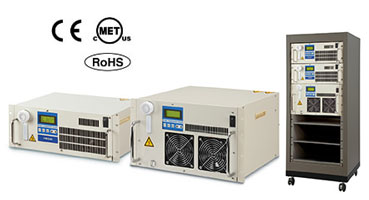

    Circulating Fluid Temperature Controller Thermo-chiller/Rack Mount Type HRR Series
    Updated Oct-19

  • Global power supply:
    Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz) [New]
    Single-phase 200 to 230 VAC (50/60 Hz)
  • Operable without the need to remove the unit from the rack Front access: Simple to control, service, and maintain with all filters and drainage accessible via the front panel
  • Space saving: Multiple chillers can be mounted to a 19-inch rack.
  • Cooling capacity: 1.2/1.8/2.4/3.0 kW (60 Hz)
  • Temperature stability: ±0.1℃

    • NEW

    Rotary Actuators/Vane Type Size：10, 15, 20, 30, 40 CRB Series
    Updated Oct-19

  • Features a compact body with a built-in angle adjuster unit and auto switch unit (Size: 20, 30, 40)
    Overall length 44% shorter,Weight 48% lighter
  • Piping, wiring, and angle adjustment can be performed on the same side for easier mounting.
  • Easy-to-adjust start and end position with the angle adjustment bolts (adjustment as standard).
  • Rotating angle can be easily checked using the chamfered position of the shaft. (Only for CDRB with auto switch)
  • Each of the units below for the CRB2 series can be mounted to the new CRB series.

    • NEW

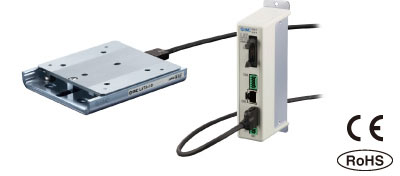

    Built-in Intermediate Supports Electric Actuator: High Rigidity Slider Type Ball Screw Drive LEJS63□-□M Series
    Updated Oct-19

  • A maximum speed of 1,800 mm/s1 has been achieved throughout the entire stroke!
    The use of intermediate supports results in reduced deflection of the ball screw when a long stroke is used.
  • Max. stroke: 1,790 mm
  • Horizontal work load: 85 kg (For the 10 mm lead)
  • Positioning repeatability: ±0.01 mm (High-precision type)


    • Metal Knob Speed Controller with One-touch Fitting Elbow Type AS-X242-J
    Updated Oct-19

  • Knob material changed from resin to metal
  • Applicable tubing O.D.: ø4, ø6, ø8, ø10, ø12


    • 3-Screen Display Sensor Monitor PSE300A Seriess
    Updated Oct-08

  • Compatible with 5 types of pressure sensor Applicable SMC pressure sensor: PSE53□, PSE54□, PSE550, PSE57□, PSE56□
  • It is possible to change the settings while checking the measured value
  • NPN/PNP Switch Function
  • Input Range Selection (for Pressure/Flow rate)
  • Simple 3-Step Setting


    • 3-Screen Display Multi-channel Digital Sensor Monitor PSE200A Seriess
    Updated Oct-08

  • Up to 4 pressure sensors can be connected! Centralized Control Saves Installation Space. A Single Monitor Various Applications
  • It is possible to change the settings while checking the measured value.
  • IO-Link


    • Wide Angle Blow Nozzle IN-225 Series
    Updated Sep-19

  • Capable of spraying a wide area with fluid Spray angle: Approx. 100°


    • Compact Type Parallel Style Air Gripper JMHZ2 Series
    Updated Sep-19

  • Although downsized, gripping point is maintained. (ø20→ø16)
    Overall length: Max. 21.7 mm shorter (102.7 mm→81 mm)
    Thickness: Max. 7.6 mm shorter (33.6 mm→26 mm)
    Weight: Max. 180 g lighter (420 g→240 g)
  • High rigidity and precision are achieved by integrating the guide and finger in one piece.
  • With high-precision linear guide Repeatability: ±0.01 mm
  • Linear guide of the higher rigidity and precision is used.
    Higher rigidity


    • Fieldbus System EX245 Series
    Updated Sep-19

  • For Input/Output
  • Compatible with 3 types of connector: SCRJ connectors, RJ45 connectors, General-purpose connectors AIDA* specifications compliant (SCRJ connectors, RJ45 connectors)
    * Abbreviation of the Automation Initiative of German (Deutschland) Automobile Manufacturers
  • FW (firmware) update function Simultaneous writing is possible from network connection.
  • Web server function Status check and valve ON/OFF are possible on the web browser.
  • Compact, Lightweight: Height: 40 mm reduction, Weight: 53.5% reduction (465 g b Existing model: 1000 g)


    • Flame Resistant (Equivalent to UL-94 Standard V-0) Speed Controller with One-touch Fittings In-line Type AS-X900
    Updated Aug-19

  • Uses flame-resistant resin (Equivalent to UL-94 Standard V-0)
  • Applicable tubing O.D.: ø6, ø8, ø10


    • Vacuum Flow ZH-X226/-X249/-X338 Series
    Updated Aug-19

  • High-flow blow and vacuum can be performed by supplying compressed air.
    blow: Max. 1550 L/min (ANR)
    vacuum: Max. 880 L/min (ANR)
  • Application examples
    For coolant blow to blow off cutting chips, For water droplet removal


    • Circulating Fluid Temperature Controller Thermo-chiller Dual Channel Refrigerated Thermo-chiller for Lasers HRL Series
    Updated Aug-19

  • Temperatures for 2 fluid channel systems can be controlled individually by one chiller.
  • Space saving, Reduced wiring
  • Footprint 22% reduction
  • One power supply system for 2 channels
  • Energy saving
    Power consumption reduced by 30%


    • Digital Flow Switch Manifold for Water PF3WB/C/S/R Series
    Updated Jul-19

  • Applicable fluid: Water, Ethylene glycol aqueous solution
  • Space saving
    Footprint Max. 85% reduction
    Weight Max. 65% reduction
  • Needs no piping: Work-hour for installation Max. 45% reduction
  • IO-Link Compatible
  • 3-color/2-screen display
  • Fluid temperature: 0 to 90°C


    • Circulating Fluid Temperature Controller Thermo-chiller Environmentally Resistant Type HRS-R Series
    Updated Jul-19

  • Resistant to dusty or water splashing environment
  • Protection of the electrical unit: IP54
  • Metal panel Entire exterior surface is metal.
    Stainless steel panel can be selected. (Option)
  • Large capacity tank (12 L)
  • Ambient temperature: 5 to 45°C


    • 3-Color Display Digital Flow Switch for Water PF3W-Z/L Series
    Updated Jul-19

  • Applicable fluid: Water, Ethylene glycol aqueous solution
  • Lightweight: Max. 53% reduction (40 L/min, With temperature sensor)
  • IO-Link Compatible
  • 3-color/2-screen display
  • Compatible with the temperature sensor & flow adjustment valve
  • Fluid temperature: 0 to 90°C


    • 2-Color Display Digital Flow Switch PF2M7 Series
    Updated Jul-19

  • Dry air, N2, Ar, CO2
  • Wide range of flow measurement with one product
    Flow ratio 100:1, Smallest settable increment: 0.01 L/min
  • Improved drainage and resistance to foreign matter
  • Compact, Lightweight　Weight: 27.3% reduction (55 g→40 g)
  • Low current consumption: 35 mA or less
  • Grease-free


    • Line Filter Mist Separator Micro Mist Separator AFF/AM/AMD30
    Updated Jul-19

  • Compressed Air Purity Class: ISO8573
  • Face-to-face and depth dimensions reduced by 30%
  • Weight reduced by 30% AFF/AM□30: 0.39 kg (Existing model: 0.55 kg)
  • Flow capacity increased by 50%
  • Pressure drop: 10 kPa or less
  • No tools are required. Easier replacement of the element
  • Transparent bowl guard (Double layer design)
  • An end cap with slits is used for the element.


    • Vacuum Pad/Bellows Type ZP3P-JT Series
    Updated Jul-19

  • Adsorption transfer of workpiece with a soft film flexible packaging
  • Thin film skirt and special shape rib
  • Guide attachment function
  • Acceleration/deceleration: Adsorption transfer possible at 4G
  • FDA (USA Food and Drug Administration) regulations compliant materials are used for pad and guide attachment.
  • Blue colored pad
    Easy to distinguish the vacuum pad by color during contamination inspection


    • Fieldbus System （Output device for driving 5-port solenoid valves）EX260 Series
    Updated Jun-19

  • IO-Link compatible products have been added.
    Can be connected using a single cable
    Various types of diagnostic tests can be performed using service data.
  • Space-saving installation : Compact Approx. 28mm
  • IP67
  • Drives up to32 solenoids
  • Daisy-chain wiring communication


    • Vacuum Angle Valve with Release Valve XLJ Series
    Updated Jun-19

  • Prevents the reverse flow of oil through the roughing pump (rotary pump) into the chamber
  • Reduced piping labor due to the built-in release valve structure


    • Step Motor Controller JXCE1/91/P1/D1 Series
    Updated Nov-16

  • Communication protocol
    EtherCAT®, EtherNet/IP™, PROFINET, DeviceNet™
  • Two types of operation command
  • Numerical monitoring available
  • Transition wiring of communication cables


    • Cylinder with Lock ø32, ø40, ø50, ø63 MWB Series
    Updated Oct-16

  • Lock can be manually operated with a hexagon wrench. Easily mounted onto equipment
  • Separate construction for improved ease of maintenance
  • Holding force improved by 14%
  • High stopping accuracy within ±1 mm
  • Overall length reduced by 13 mm max.


    • Air Saving Speed Controller AS-R/AS-Q Series
    Updated Oct-16

  • Reduce air consumption just by mounting to air cylinder
  • Air consumption reduced by 25%
  • Mounting and operation are the same as a speed controller
  • Equal response time
    No delay of the response time with two-pressure control
  • Compact 85% reduction
    The functions of the regulator and speed controller are combined.


    • One-touch Fittings Series KQ2
    Updated Sep-16

  • Oval type release button added [New]
  • Possible to use in vacuum to -100 kPa.
  • Improved tube insertion/removal
    Insertion force: Max. 30% reduction
    Removal force: Max. 20% reduction
  • Compact and lightweight
  • Body type: totaled 51 models
  • Thread material/Surface treatment(Treated or Non-treated): 2 types
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated


    • Plug-in 5 Port Solenoid Valve Terminal Block Box (Spring Type) SY3000/5000/7000 Series
    Updated Sep-16

  • Compact Installation area of the terminal block box Reduced by approx. 40%
  • Reduced work-hours! Spring type terminal block adopted. Crimping work using Y-terminals is not necessary.


    • In-line Air Filter ZFC Series Updated Jul-16

  • ZFC1□/ZFC3□ added [New]
  • Operating pressure range: -100 kPa to 1.0 MPa (20°C) Both positive pressure and vacuum pressure can be used with one unit!
  • With lock mechanism During positive pressure, prevents components from being scattered when loosened.
  • 2 types of transparent case materials are available. Polycarbonate (Standard), Nylon (Made to order)


    • 4 Axis Step Motor Controller (Parallel I/O) Series JXC73/83/93 Updated May-16

  • EtherNet/IP™ type added [New]
  • Linear/circular interpolation
  • Positioning/pushing operation
  • Absolute/relative position coordinates instructions
  • Step data input (Max. 2048 points)
  • Space saving, Reduced wiring
  • 4 axis synchronous control


    • 5 Port Solenoid Valve SY3000/5000/7000 Series Updated Mar-16

  • Added with residual pressure release valve and vacuum release valve with restrictor. [New]
  • Added the dual port EX600 EtherNet/IP™ product.[New]
  • Added the products for the EX500 Gateway Decentralized System 2.[New]
  • Added SUP stop valve spacer (with residual pressure release valve).[New]
  • Thanks to the flow increase, valve size can be reduced! Saves energy and space.
  • Power consumption: 0.1 W (With power saving circuit) / 0.35 W (Standard)


    • Reference Pin Cylinder
    MGPL50-X2616 Updated Mar-16

  • Ideal for shifting reference pins and reference workpiece receptacles
  • Highly accurate mounting positions.
  • Highly accurate positioning even after the cylinder is replaced.
  • D-P3DWA magnetic field resistant auto switch available
  • Coil scraper equipped as standard


    • Water Regulator WR110-□-X224/WR110-□-X215 Updated Feb-16

  • Pressure adjustment of water line

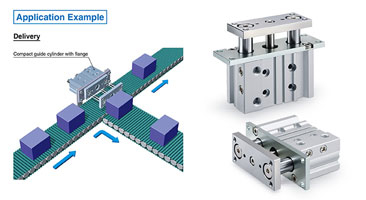

    • Compact Guide Cylinder with Flange ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100 Series MGP Updated Feb-16

  • Plate side flange type added.
  • Application Example: Delivery


    • Peltier-Type Chiller Thermo-con/ Rack Mount Type Series HECR Updated Feb-16

  • Added cooling capacity 400 W, 510 W
  • Good space utilization: Mountable in a 19-inch rack Saves space by mounting multiple equipment together in a rack.
  • Temperature stability: 10°C to 60°C
  • Cooling capacity: 200 W, 400 W, 510 W, 800 W, 1 kW
  • Power consumption: 200 W, 400 W


    • Card Motor Series LAT3 Updated Jan-16

  • Maximum stroke 50 mm added [New]
  • Maximum load mass doubled 0.5 kg→1 kg [New]
  • Serial communication Modbus compatible [New]
  • The transportation, pushing and length measurement systems have been miniaturized through the use of a linear motor.
  • Thickness 9 mm, Weight 130 g (at stroke 10 mm)
  • Positioning repeatability: ±5 μm
  • Pushing measurement accuracy: ±10 μm



    • Back to Top

    Copyright © 2022 Synnex Integrate Solution Co., Ltd. All rights reserved.

    Terms of Use Privacy Policy
    • Follow us on Twitter!
    • Add us on Flickr
    • Like us on Facebook
    • Follow us on Tumblr
